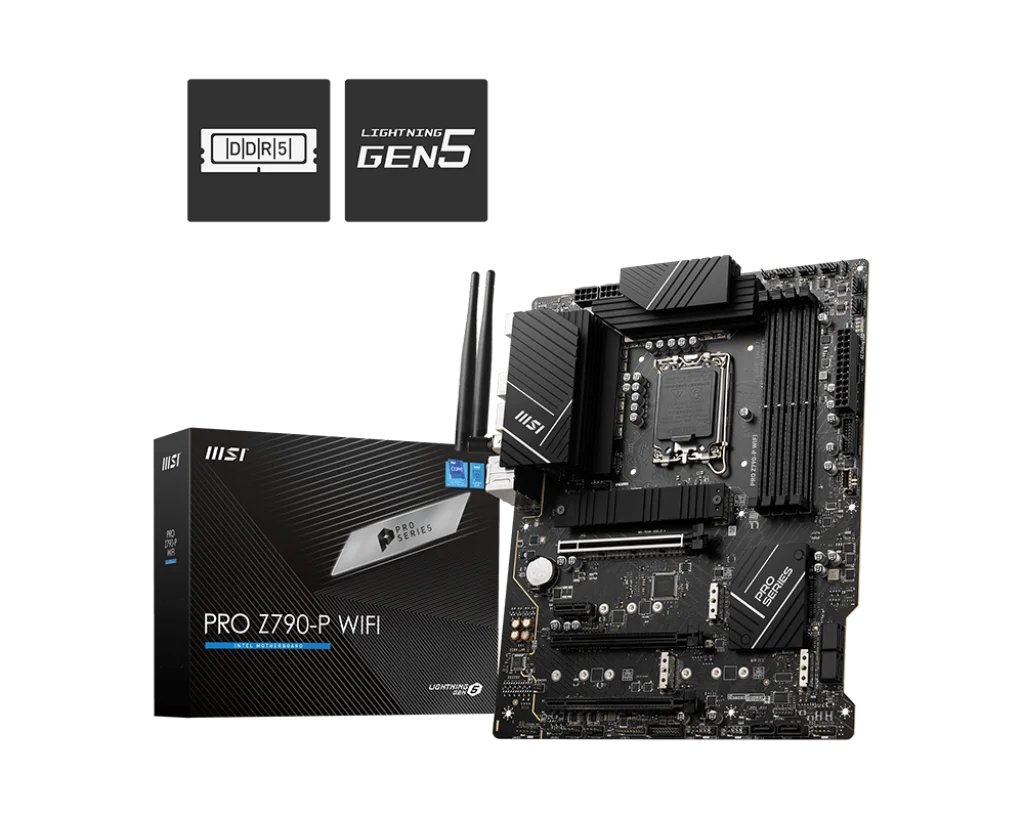

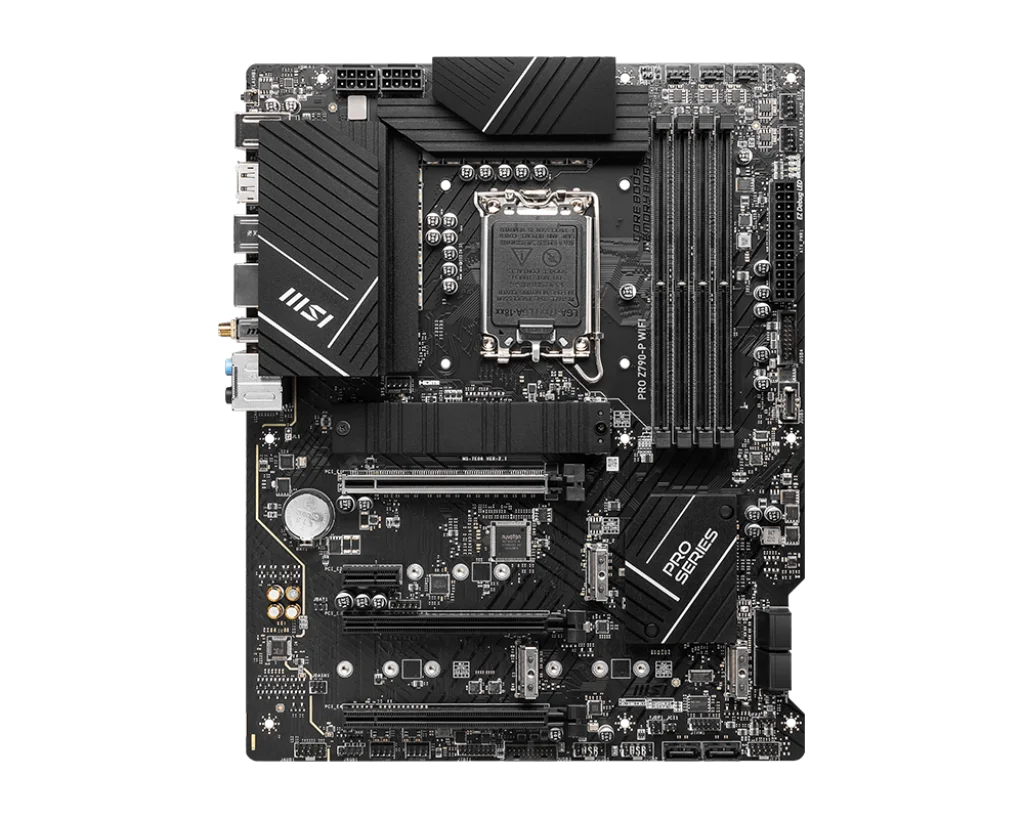

MSI PRO Z790-P WIFI DDR5 MOTHERBOARD

Model Name:

PRO Z790-P WIFI

CPU Support:

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

CPU Socket:

LGA 1700

Chipset:

Intel® Z790 Chipset

Expansion Slots:

1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 3.0 x1 slots

Display Interface:

Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
– Requires Processor Graphics

Memory Support:

4 DIMMs, Dual Channel DDR5 7000+MHz (OC)

Storage:

4x M.2 Gen4 x4 64Gbps slots,
6x SATA 6Gbps ports

USB ports:

1x USB 3.2 Gen 2×2 20G (1 Type-C),
2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C),
6x USB 3.2 Gen 1 5Gbps (6 Type-A),
8x USB 2.0

LAN:

Intel® 2.5G LAN

WiFi / BT:

Intel® Wi-Fi 6E, Bluetooth 5.3

Audio:

8-Channel (7.1) HD Audio with Audio Boost

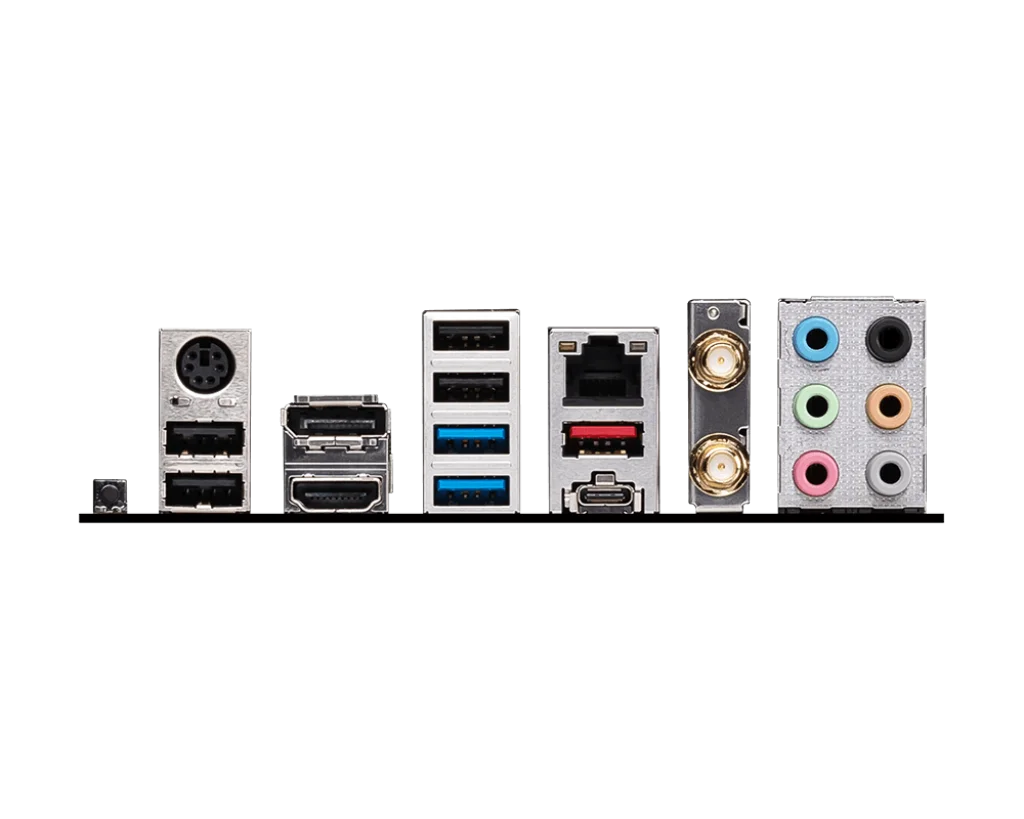

BACK PANEL PORTS:

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. Flash BIOS Button
8. USB 2.0
9. HDMI™
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2×2 20Gbps (Type-C)
12. USB 3.2 Gen 2 10Gbps (Type-A)

BOX CONTENT:

FEATURES:

• Lightning Gen 5:

  The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
  maximum transfer speed.

• Latest DDR5 Memory:

  A huge step of DDR performance enhancement with the latest
  DDR5 memory and MSI Memory Boost technology.

• Wi-Fi 6E:

  The latest wireless solution supports 6GHz spectrum, MU-MIMO
  and BSS color technology, delivering speeds up to 2400Mbps.

• Lightning USB 20G:

  Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
  4X faster than USB 3.2 Gen 1.

• Extended Heatsink Design:

  MSI extended PWM heatsink, and enhanced circuit design ensures
  even high-end processors to run in full speed.

• M.2 Shield FROZR:

  Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
  while preventing throttling, making them run faster.

• 2.5G Network Solution:

  Featuring premium 2.5G LAN to deliver better network
  experience.

• EZ Debug LED:

  Easiest way to troubleshoot.

• Frozr AI Cooling:

  Detect CPU & GPU temperatures and automatically adjust system
  fan duty to a proper value.

• Core Boost:

  With premium layout and fully digital power design to support
  more cores and provide better performance

LINK:PRO Z790-P WIFI
