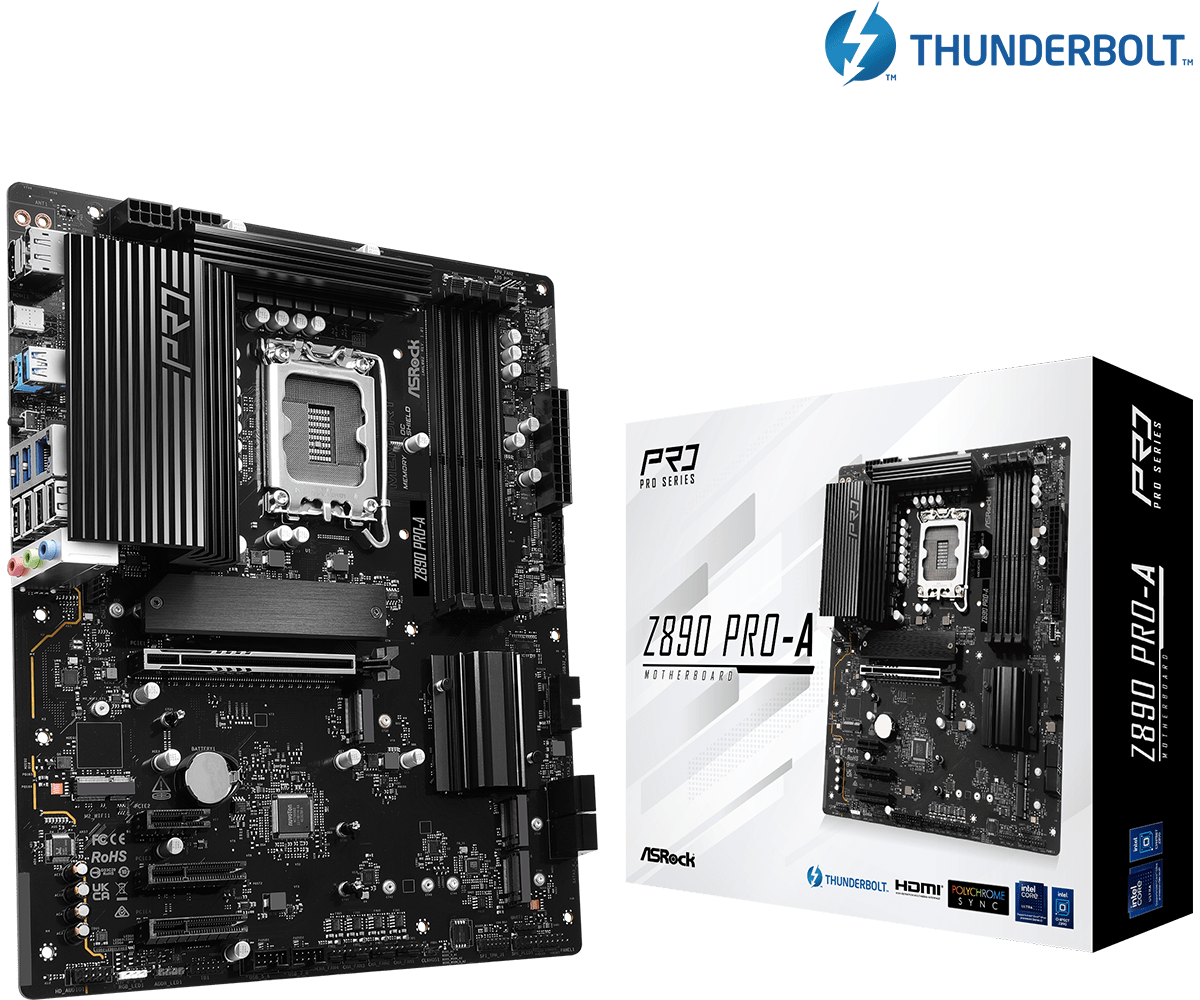

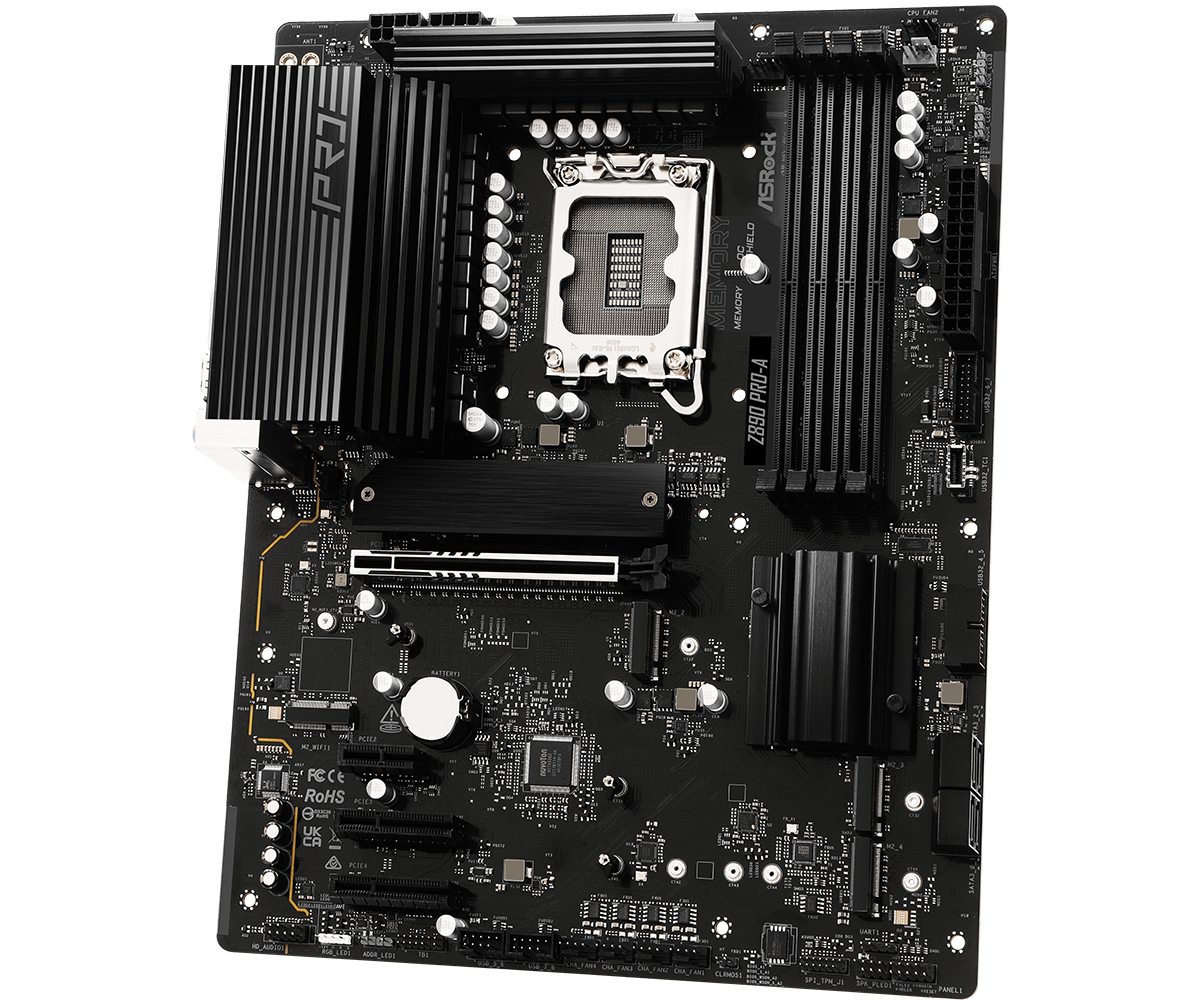

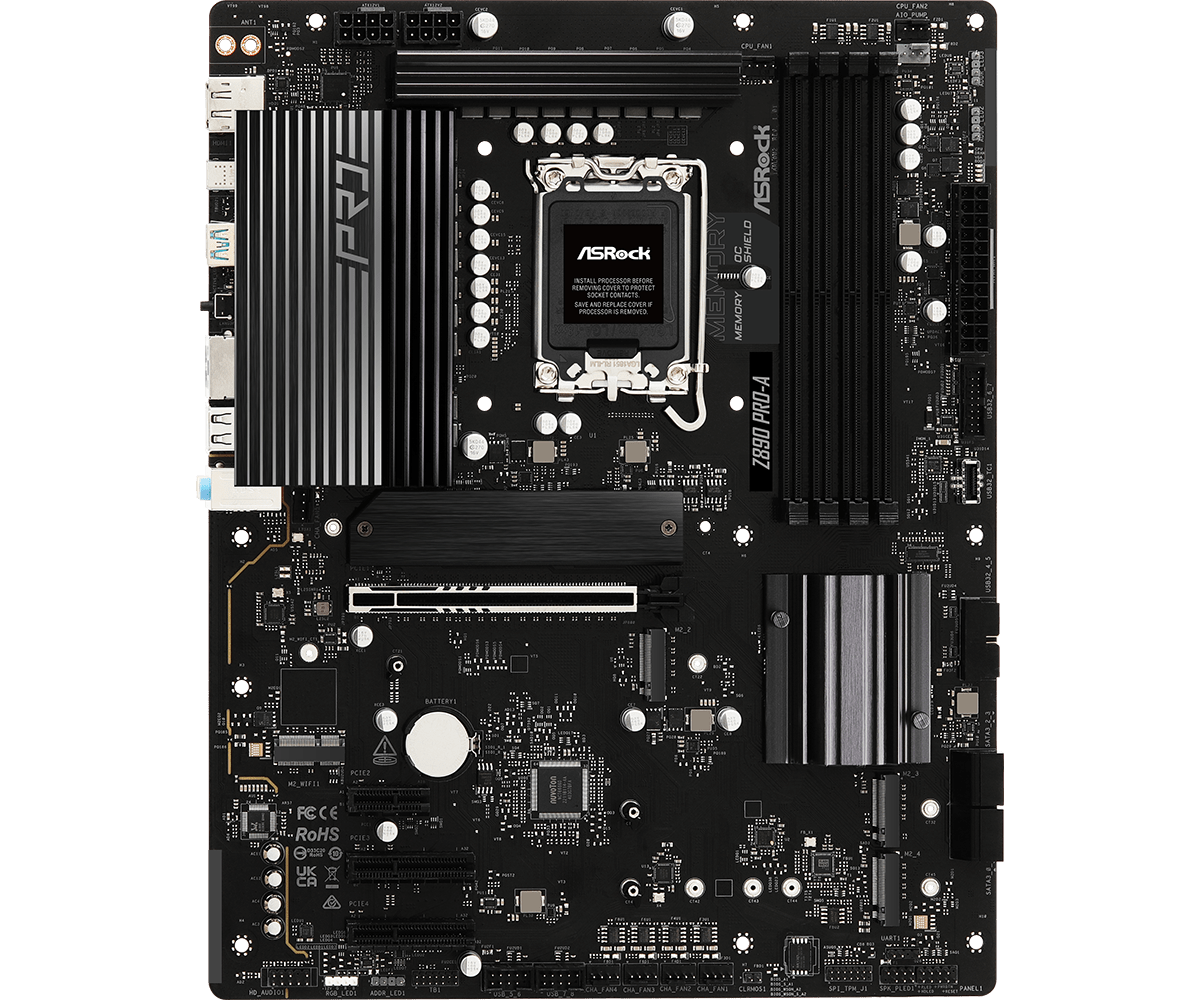

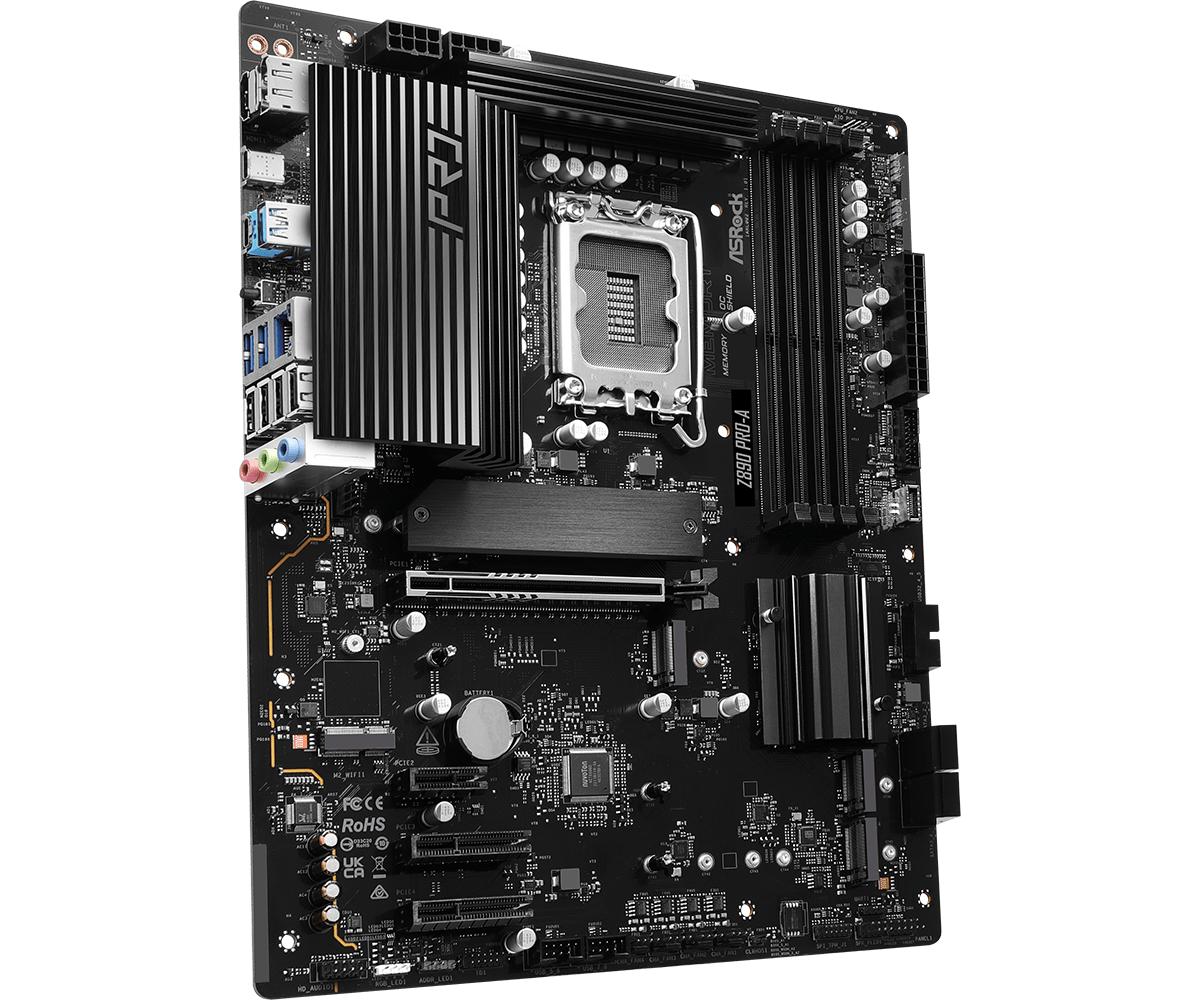

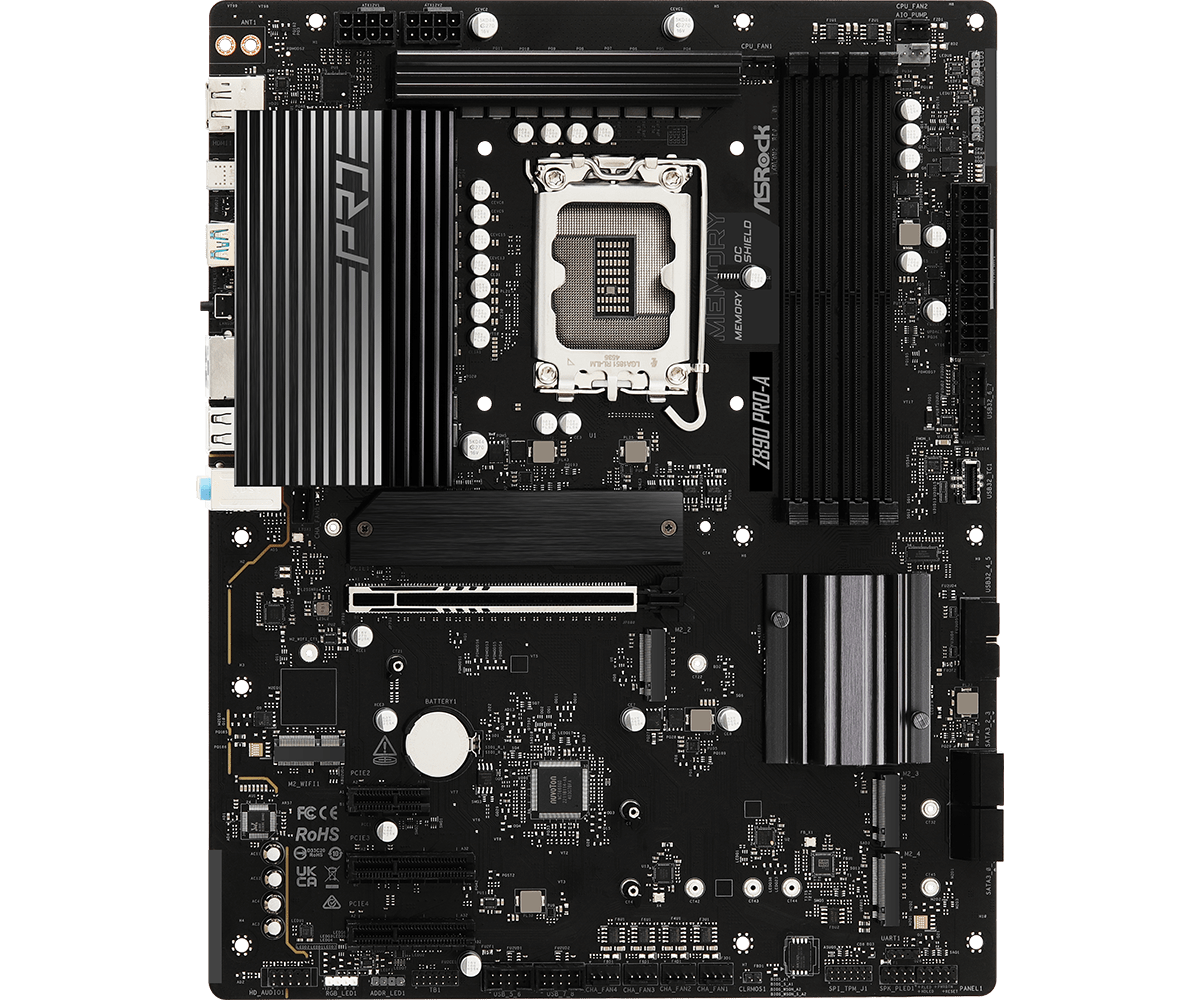

ASROCK Z890 Pro-A Motherboard DDR5

ASROCK Z890 Pro-A Motherboard DDR5

$188.00 USD
$188.00 USD
Sale Sold out
Shipping calculated at checkout.

ASROCK Z890 Pro-A Motherboard DDR5

SPECIFICATIONS:

Unique Feature
  • Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    - Thunderbolt™ 4 Type-C Port (40 Gb/s)
  • Rock-Solid Durability
    - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
    - Memory OC Shield
  • Ultrafast Connectivity
    - 2.5G LAN
  • EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
  • EZ Troubleshooter
    - ASRock Post Status Checker
CPU Support:
Intel® Core™ Ultra Processors (Series 2), Hybrid Tech, Turbo Boost Max 3.0
Chipset:
Intel® Z890
Memory:
4x DDR5 DIMMs, Dual Channel, up to 9066+ MHz (OC), 256GB Max
BIOS:
256Mb UEFI w/ GUI, BIOS Flashback
Graphics:
HDMI 2.1, DisplayPort 1.4, Thunderbolt™ 4 Type-C
Audio:
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN:
Realtek Dragon RTL8125BG 2.5G LAN
Slots:

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage:

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
RAID:

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB:

1x Thunderbolt™ 4 Type-C, 2x Gen2x2 Type-C, 1x Gen2 Type-A, 6x Gen1, 8x USB2

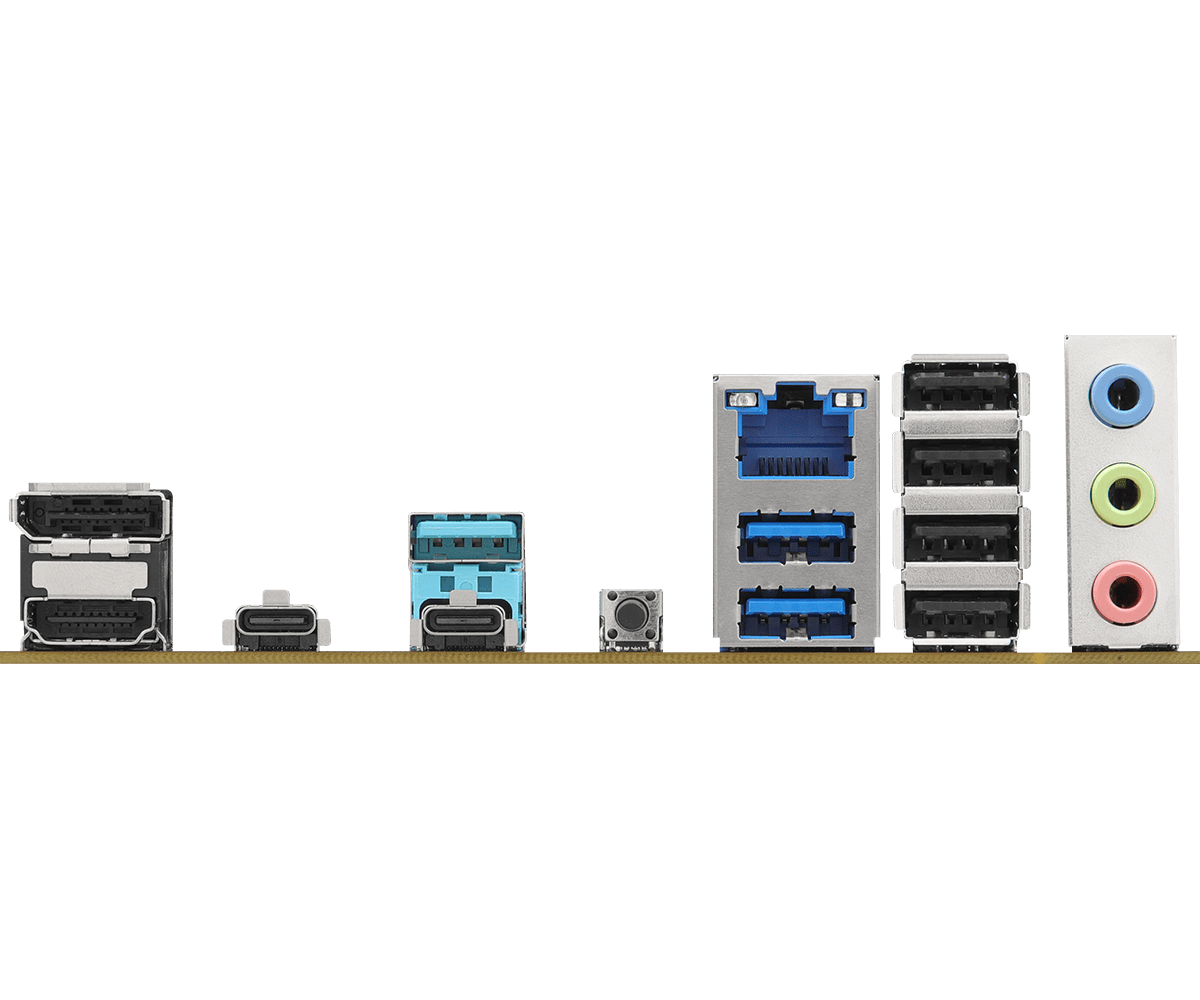

Rear Panel I/O:

  •  2 x Antenna Mounting Points
  •  1 x HDMI Port
  •  1 x DisplayPort 1.4
  •  1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
  •  1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  •  1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
  •  2 x USB 3.2 Gen1 Ports
  •  4 x USB 2.0 Ports
  •  1 x RJ-45 LAN Port
  •  1 x BIOS Flashback Button
  •  HD Audio Jacks: Line in / Front Speaker / Microphone
Accessories:

- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Form Factor:

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
OS:
Windows 11 64-bit
